Winch Trolley
Winch Trolley
Guanhui’s Winch Trolley is a smart, space-saving solution designed for heavy-duty industrial applications. Combining advanced safety features, intelligent driving systems, and maintenance-free technology, it is engineered to maximize operational efficiency while minimizing costs.
Interested in this product? Contact us now to request a personalized offer!
Core Specifications
- SWL (Safe Working Load): 5t to 500t
- HOL (Height of Lift): Up to 160m
- Class: FEM/ISO M3-M8
Key Features and Benefits
Space-Saving Design
Optimized to minimize building costs and maximize operational space.
The compact structure reduces hook approaches, enhancing the usable area of your facility.
Heavy-Duty Performance
Built for industrial-grade lifting with high-capacity processing capabilities, ensuring reliable performance even in the most demanding environments.
Smart Driving Technology
Features intelligent controls for precise and safe operations, including:
- Inching
- Micro-speed control
- Anti-sway systems
Maintenance-Free and Durable
Designed for minimal maintenance requirements, reducing downtime and long-term costs.
Durable components ensure consistent performance over years of operation.
Advanced Safety Monitoring
Equipped with an intuitive Human-Machine Interface (HMI) and safety monitoring system for real-time operation tracking.
Multiple lifting tong options are available to accommodate diverse applications.
Why Choose Guanhui’s Winch Trolley?
- Efficiency: Smart driving and space-saving designs enhance productivity.
- Reliability: Heavy-duty construction ensures consistent performance.
- Cost-Effective: Maintenance-free design lowers operational costs.
- Safety: Advanced monitoring and anti-sway features protect both operators and materials.

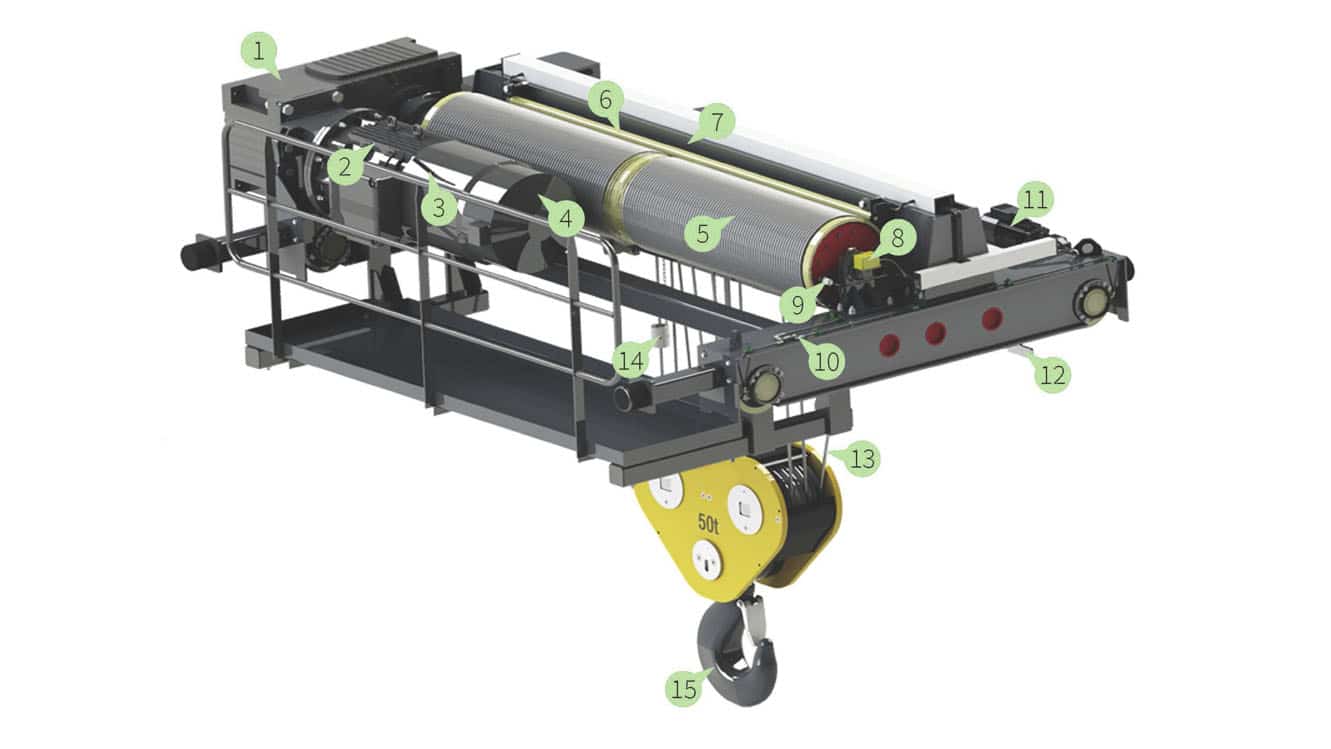

Parts Diagram of Guanhui Cranes
Guanhui Crane Parts Diagram
Guanhui Cranes are designed with precision-engineered components to ensure safety, durability, and efficiency. Below is a detailed breakdown of the key parts that make up our cranes:
1. IP55 Control Cubicle
Built to withstand harsh environments, ensuring reliable operation and protection against dust and water.
2. Heavy Duty Motor
- IP55 rating / Class H insulation
- 60% ED rating for continuous operation
- Built-in overheating protection
3. Manual Release
Allows manual operation in case of emergencies or power failure.
4. Electromagnetic Disk Brake
- Heavy-duty construction
- Dust-proof design for enhanced reliability
5. High-Grade Steel Wire Rope
Engineered for maximum strength and durability in heavy lifting applications.
6. Rope Roller
Ensures smooth and consistent rope guidance to prevent wear and tear.
7. Overloading Protection
Protects the crane and load from exceeding safe weight limits, ensuring operational safety.
8. Rotation Limit Switch
Prevents excessive rotation, ensuring precise and safe operation.
9. Overspeed Protection
Automatically limits lifting speeds to prevent accidents or mechanical failure.
10. Grease Nipples in One Group
Simplifies maintenance by centralizing grease application points.
11. Stepless Traversing
Offers smooth and precise movement for optimal load positioning.
12. Anti-Dropping Latch
Prevents unintentional dropping of the load, ensuring additional safety.
13. True Vertical Lifting
Ensures precise and straight lifting without side-pulling.
14. Hook Approach Limiter
Prevents the hook from moving beyond safe operational limits.
15. DIN Standard Hook
- Made from 34CrMo4QT/34CrNiMo6QT steel for maximum durability
- Ergonomic forging for ease of handling
- Optimized size for efficient use
Each component is crafted with precision and tested to ensure Guanhui Cranes meet the highest standards of safety, reliability, and performance.
